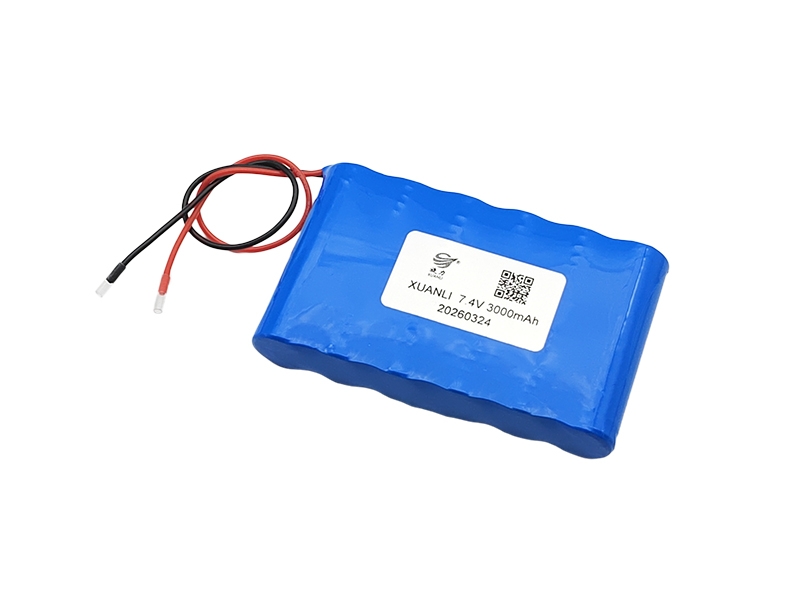

7.4V cylindrical lithium battery product model: XL 14500 7.4V 3000mAh
7.4V cylindrical lithium battery technical parameters (specific design according to customer requirements - voltage/capacity/dimension/wiring)
Single battery model: 14500
·Single battery voltage: 3.7V
·Nominal voltage of the battery pack: 7.4V
·Single battery capacity: 3.0Ah
·Battery combination method: 2 series 3 parallel
·Voltage range of the combined battery: 5.0~8.4V
·Capacity of the combined battery: 3.0Ah
·Battery pack power: 22.2Wh
·Battery pack size: 15*50*86mm
·Maximum discharge current: < 3.0A
·Instantaneous discharge current: 6.0 - 9.0A
·Maximum charging current: 0.2 - 0.5C
·Number of charge and discharge cycles: > 500 times
·Main chips: (Seiko, TI)
7.4V cylindrical lithium battery
·Compliant with relevant national battery standards and requirements
·All battery products are calibrated and tested before leaving the factory and can be used directly.
